How it works
Touchstone™ is a modular porcelain wall panel system that installs in a day — no thinset, no grout, no wet trades. Clear process, standard tools, a manufacturer-trained network behind every job.
See a full install
Pardon the throwback branding — this footage predates our glow-up. Same kit, same install, same one-day finish. New paint job dropping soon.
The process
A complex install, compressed. The hard part is engineered into the kit.
01Step 01

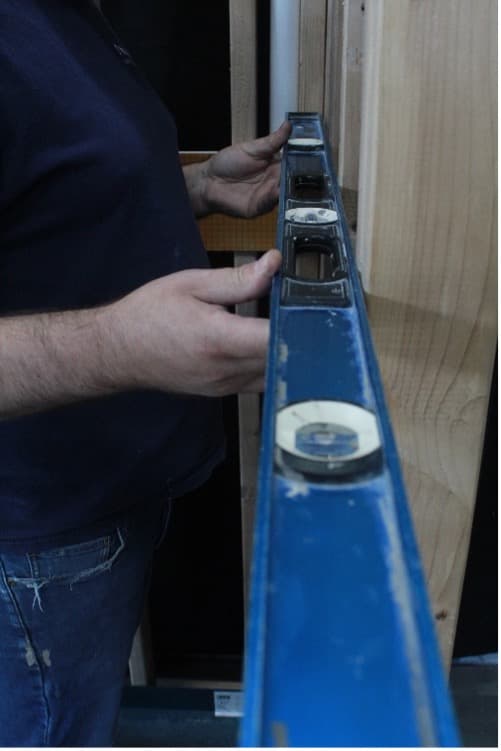

Plane studs flat, add blocking behind bracket locations, and set the skirts — pan skirts across the bottom and seam skirts along the horizontal joint. Self-adhesive flashing runs the inside corners and the pan-to-wall joint. No thinset, no full-wall membrane — the skirts and flashing carry the water path.
02Step 02

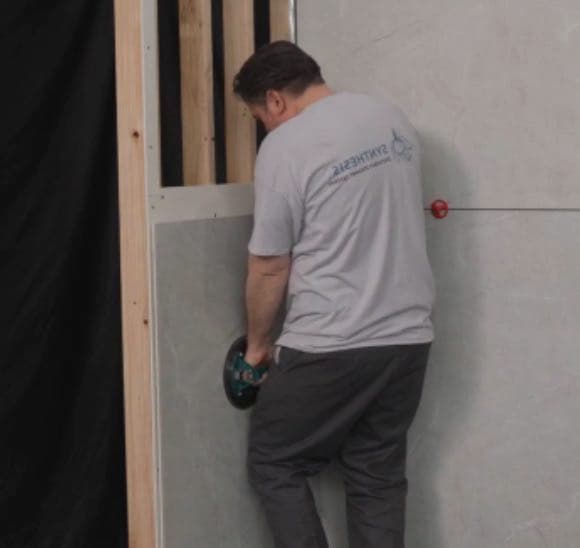

Backwall brackets go in first, registered to blocking. The aluminum vertical jig sets the return-wall brackets at matching heights. Closed-cell foam seals the vertical corners. Panels dry-fit, then set with two-part epoxy at the brackets — lippage posts hold the faces flat while it cures. No fasteners pierce the porcelain.
03Step 03

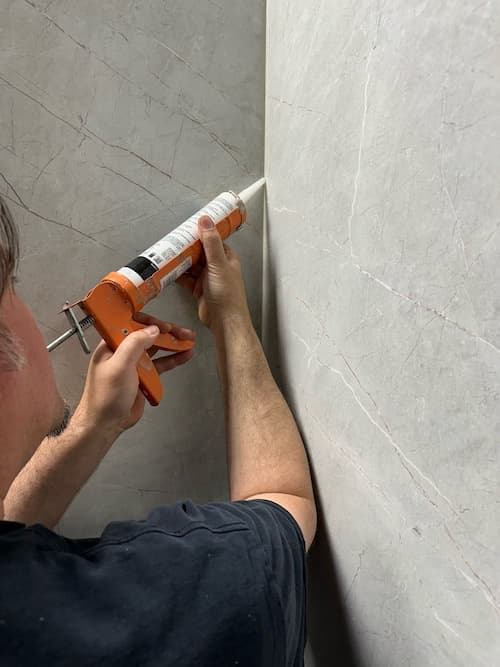

Color-matched silicone at every vertical corner, the horizontal seam, and the perimeter — 1/8" joint max. Accessories like grab bars and niches install after the surround is sealed. No grout, no float, no sealer. The shower takes water the next day.
What ships
One kit covers a standard three-wall alcove up to 60" wide by 36" deep. Panels can be cut on-site for smaller configurations.

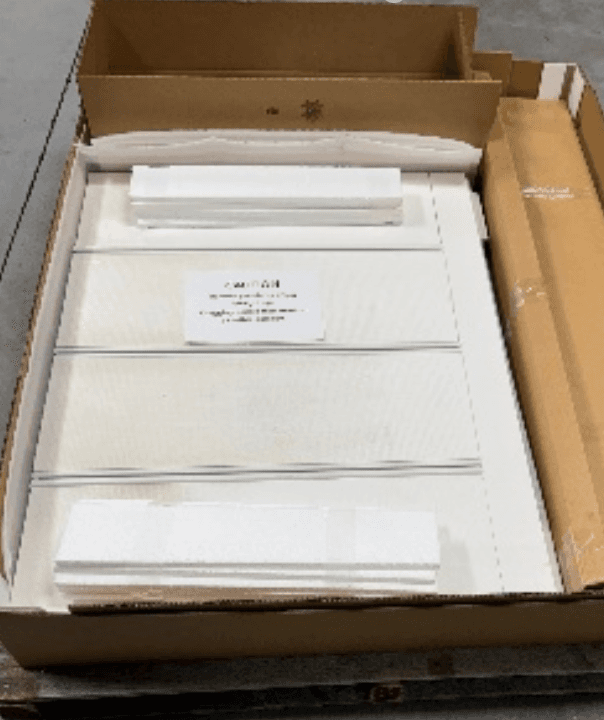

6mm vitrified porcelain factory-bonded to an engineered waterproof backer. Large-format finish, ~525 lb kit weight.

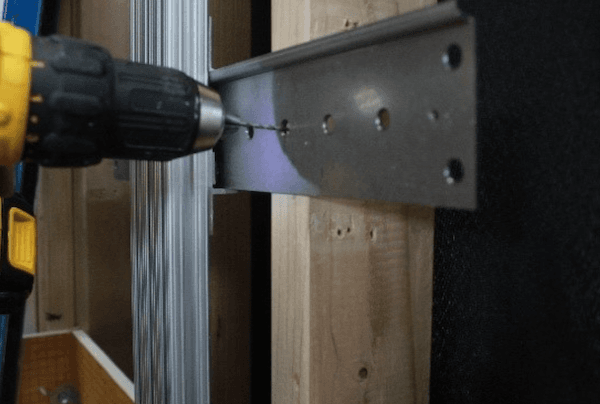

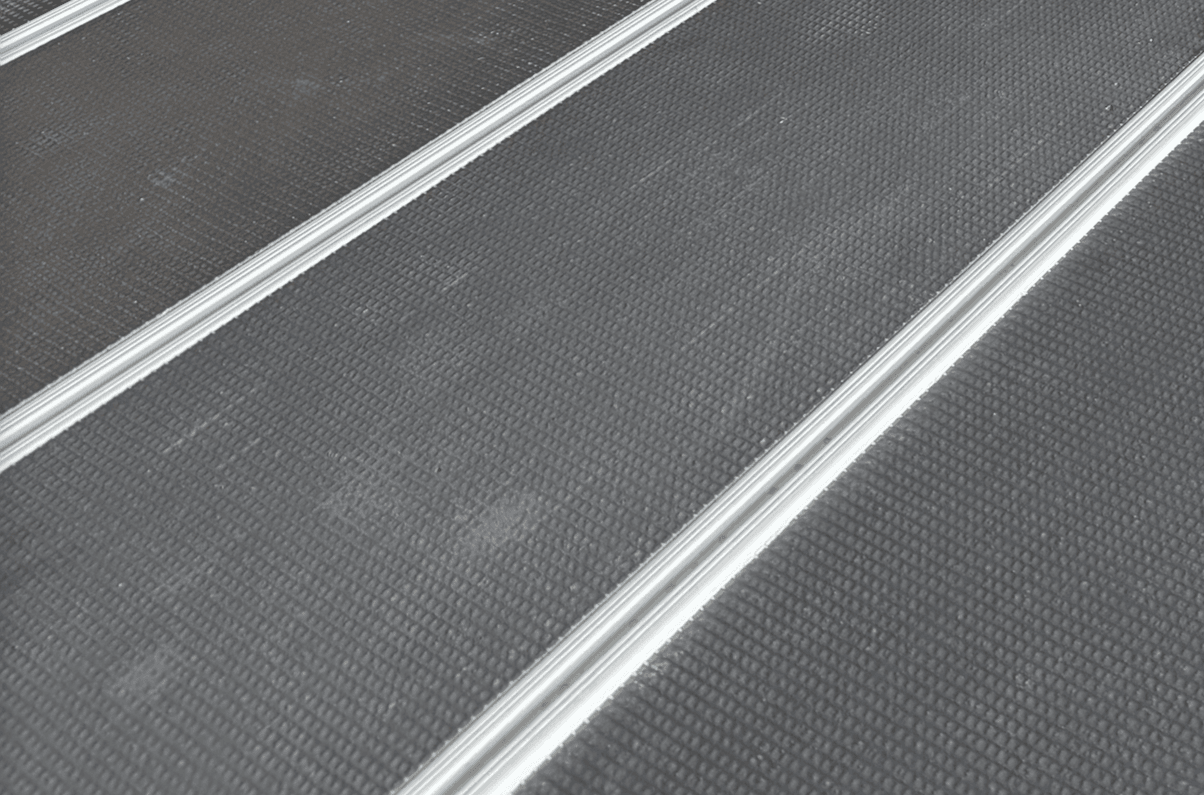

The patented mechanical attachment that replaces thinset and membrane. Pre-cut to kit dimensions.

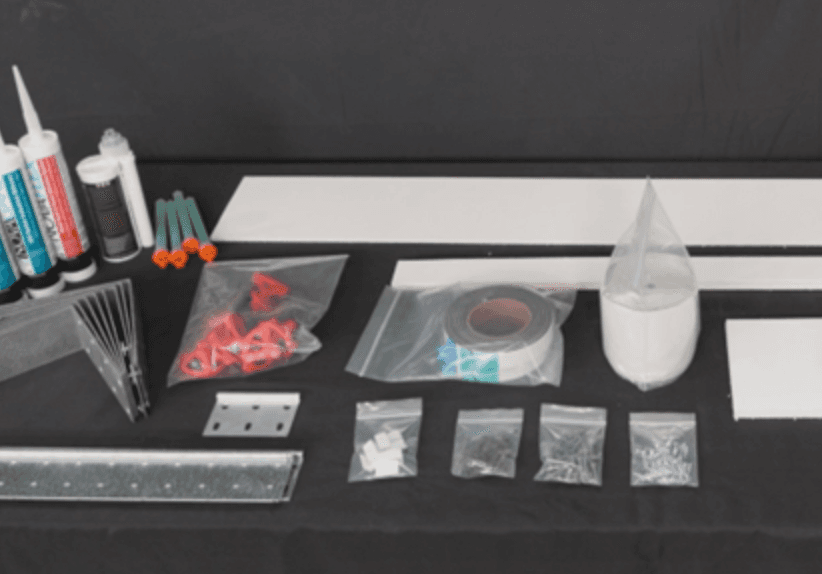

Mounting brackets, T-slot nuts, screws, spacer posts, lippage controllers, bottom spacers, skirt epoxy, and silicone — everything needed to complete the install.
Trade partners also invest in our Installation Kit and Cutting Kit — proprietary aluminum jigs that make the install faster, tighter, and repeatable. One-time tooling purchase, reusable on every job.
Safety notice
Porcelain should never be cut dry. Dry cutting generates respirable silica dust — a known cause of silicosis. Use a wet saw or angle grinder with a porcelain-rated blade and a water feed. Our Cutting Kit supports this directly.
Why training matters
Three steps on a page look simple. The actual install rewards craft — squaring the track, managing cuts around plumbing, sequencing the silicone. Our Factory Trained Installer program gets you fluent before the first job, not during it.
Training is hands-on, held on-site at distributor partners across the Midwest — no purchase minimums, no volume commitments. Show up, build a wall, pass the practical assessment.
Hands-on, in your region
Training is run at distributor partner locations across the Midwest — direct from the team that built the system.
Installer directory placement
Certified installers appear in the public directory — homeowners find you here.
A manufacturer at your back
Every kit carries a manufacturer-backed warranty, and our technical team is a phone call away when a job throws a curveball.
Install FAQ
The short list. For system specs, compatibility, and the full answer set, see the full FAQ.
A typical shower surround installs in one day. The track system fastens to standard stud framing, panels lock onto the cleats, and seams are finished with silicone. No tile setter, no grout, no curing time.
Yes. Panels are cut in the field with a wet saw or angle grinder using a porcelain-rated blade. Never cut dry — respirable silica dust is a known cause of silicosis. Our Cutting Kit supports on-site cuts directly and is covered in factory training.
Most tools are standard trim-carpentry — a level, a square, a drill, a wet saw or angle grinder with a porcelain-rated blade. The install also uses a set of proprietary aluminum jigs (our Installation Kit and Cutting Kit), which are a one-time, reusable investment.
Yes — whenever possible, acclimate the porcelain to the surrounding environment for at least 24 hours before installing. This is standard practice for large-format porcelain.
For specifiers
The architectural specification for shower wall panels, ready to drop into your submittal package.
